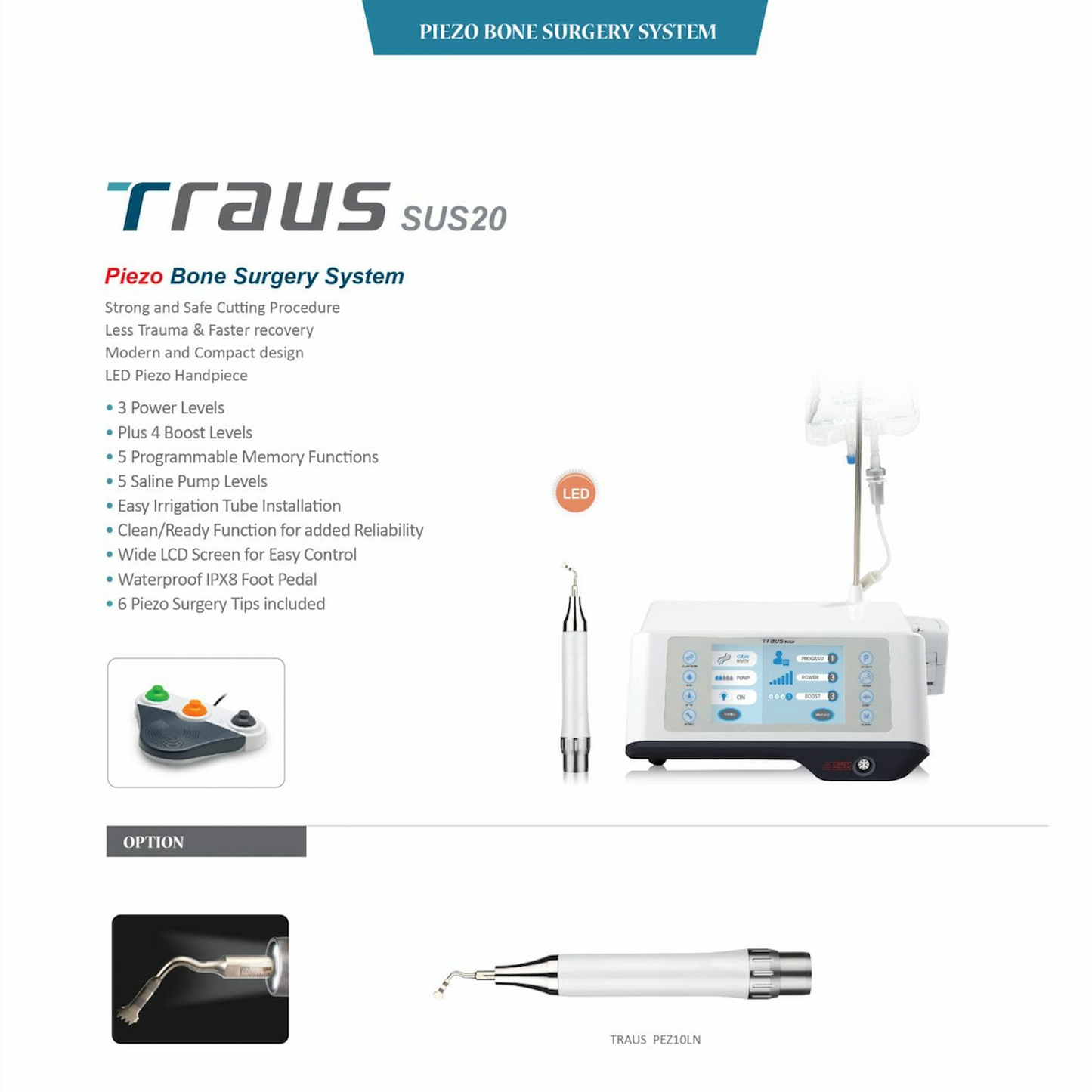

Saeshin Traus SUS20 piezoelectric bone surgery system with LED handpiece

This product is intended for professional use only.

The Saeshin Traus SUS20 is an advanced piezoelectric bone surgery system designed for precise and minimally invasive osteotomy and osteoplasty procedures. Featuring a powerful LED piezo handpiece, a compact control unit, and intuitive operation, the SUS20 ensures strong and safe cutting with less trauma and faster recovery.

Key Features

• Strong and safe cutting performance
• Less trauma and faster patient recovery
• Compact, modern, and ergonomic design
• LED piezo handpiece with 24,000 Lux illumination
• 3 power levels plus 4 boost levels
• 5 programmable memory functions
• 5 adjustable saline pump levels
• Easy irrigation tube installation
• “Clean/Ready” function for added reliability
• Wide LCD screen for easy operation
• Waterproof IPX8 foot pedal
• Includes 6 piezo surgery tips

Includes in Set

• TRAUS BUS20 control box (main unit)
• Ultrasonic LED handpiece TRAUS PEZ10LN
• 6 piezo surgery tips
• Waterproof foot pedal
• Power cable and user manual

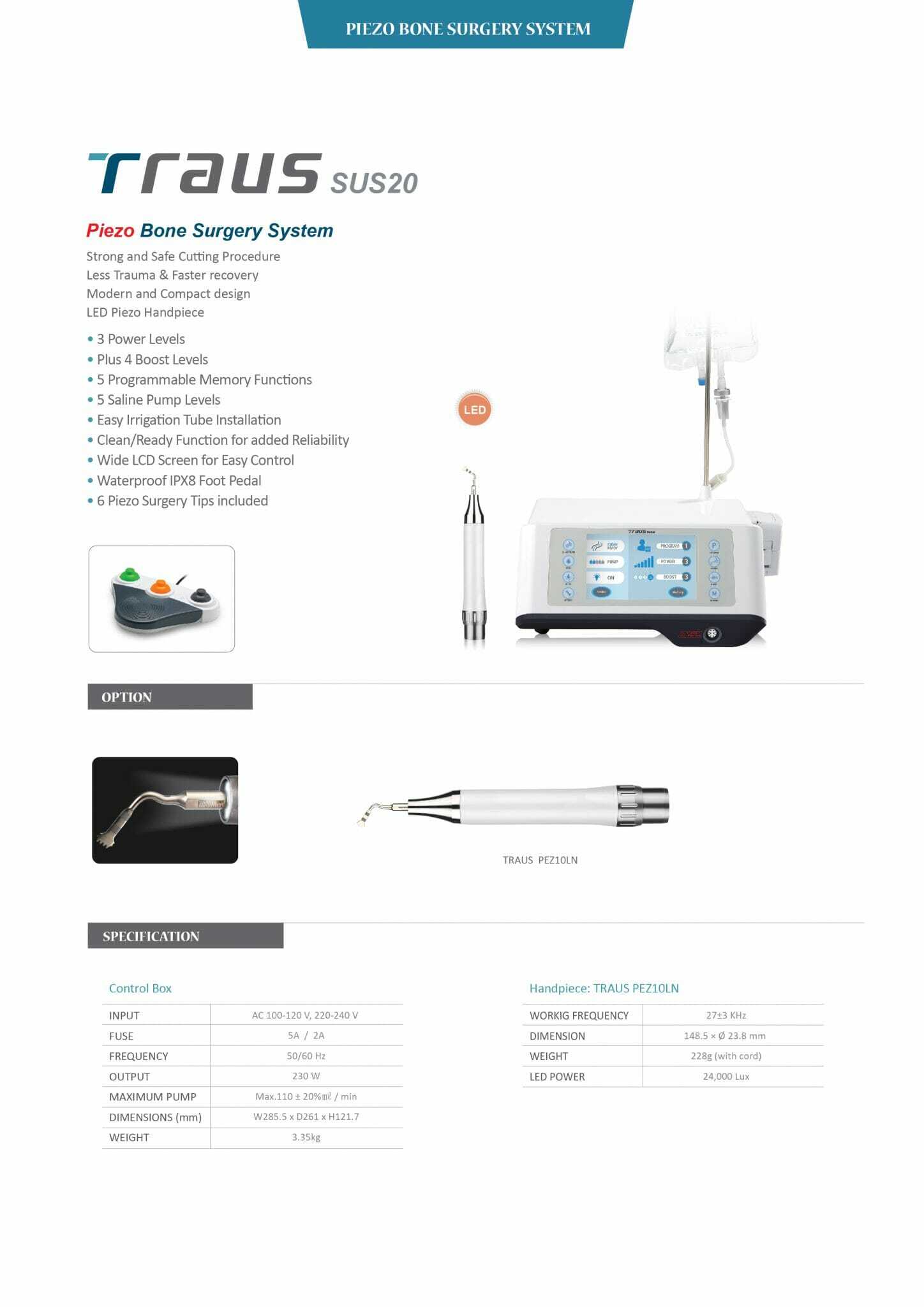

Technical Specifications

Control Box (TRAUS BUS20)

• Input: AC 100–120 V / 220–240 V
• Fuse: 5 A / 2 A
• Frequency: 50/60 Hz
• Output Power: 230 W
• Max Pump: 90 ± 20 ml/min
• Dimensions: W285.5 × D261 × H121.7 mm
• Weight: 3.35 kg (≈ 7.38 lbs)

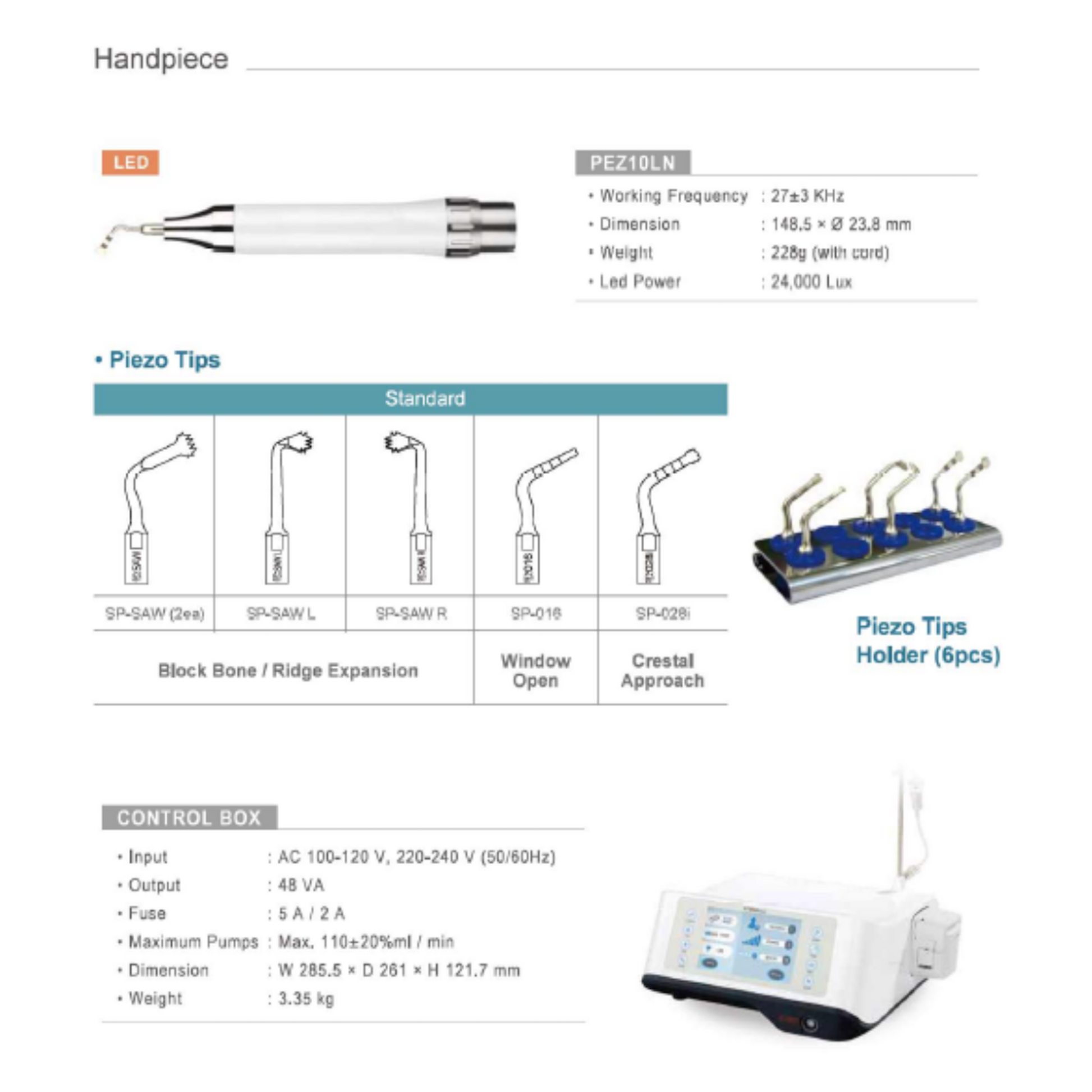

LED Piezo Handpiece (TRAUS PEZ10LN)

• Optic: Yes (LED illumination 24,000 Lux)
• Working Frequency: 27 ± 3 kHz
• Dimensions: Ø23.8 × 148.5 mm
• Weight: 2.8 oz (≈ 80 g, 228 g with cord)
