Saeshin Traus SUS10 piezoelectric and implant motor combo set

This product is intended for professional use only.

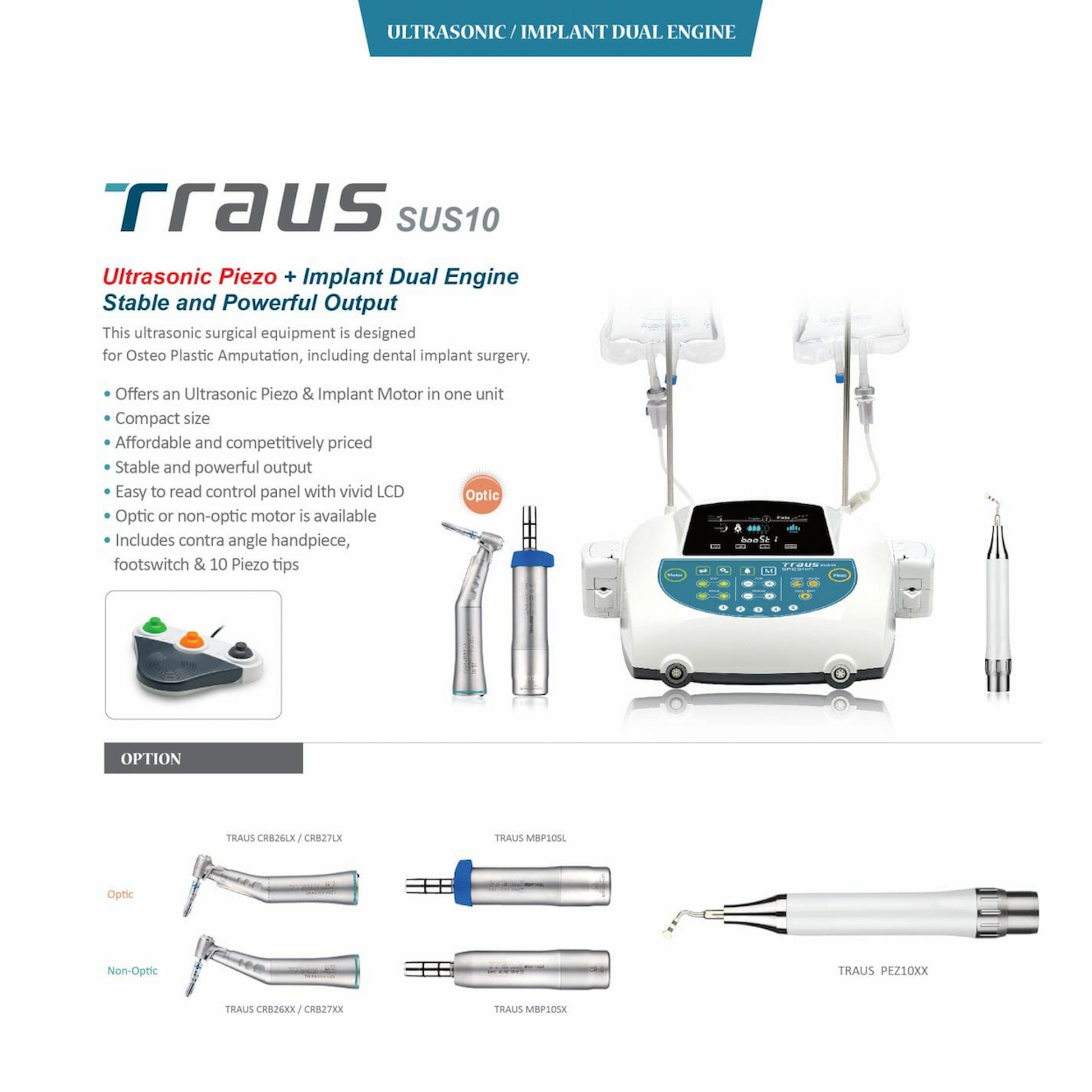

The Saeshin Traus SUS10 is a dual-engine system that combines ultrasonic piezo and implant motor functions in one compact unit. Designed for osteoplastic amputation and dental implant surgery, it offers stable output, a vivid LCD, and the option of optic or non-optic motors. The set includes a control box, ultrasonic handpiece, contra-angle handpiece, E-type motor, footswitch, and 10 piezo tips.

Key Features

• Stable and powerful dual-engine performance
• Combines ultrasonic piezo and implant motor functions
• Affordable and competitively priced
• Easy-to-read control panel with vivid LCD
• Motor auto-calibration function
• Actual speed and torque display
• 9 programmable memory settings
• Optic or non-optic motor options
• Automatic overload protection system
• ISO-standard E-type motor connection
• Motor & contra-angle handpieces are autoclavable
• Maximum speed up to 2,000 RPM (with 20:1 gear ratio)
• Maximum torque up to 70 N·cm (with 20:1 handpiece)

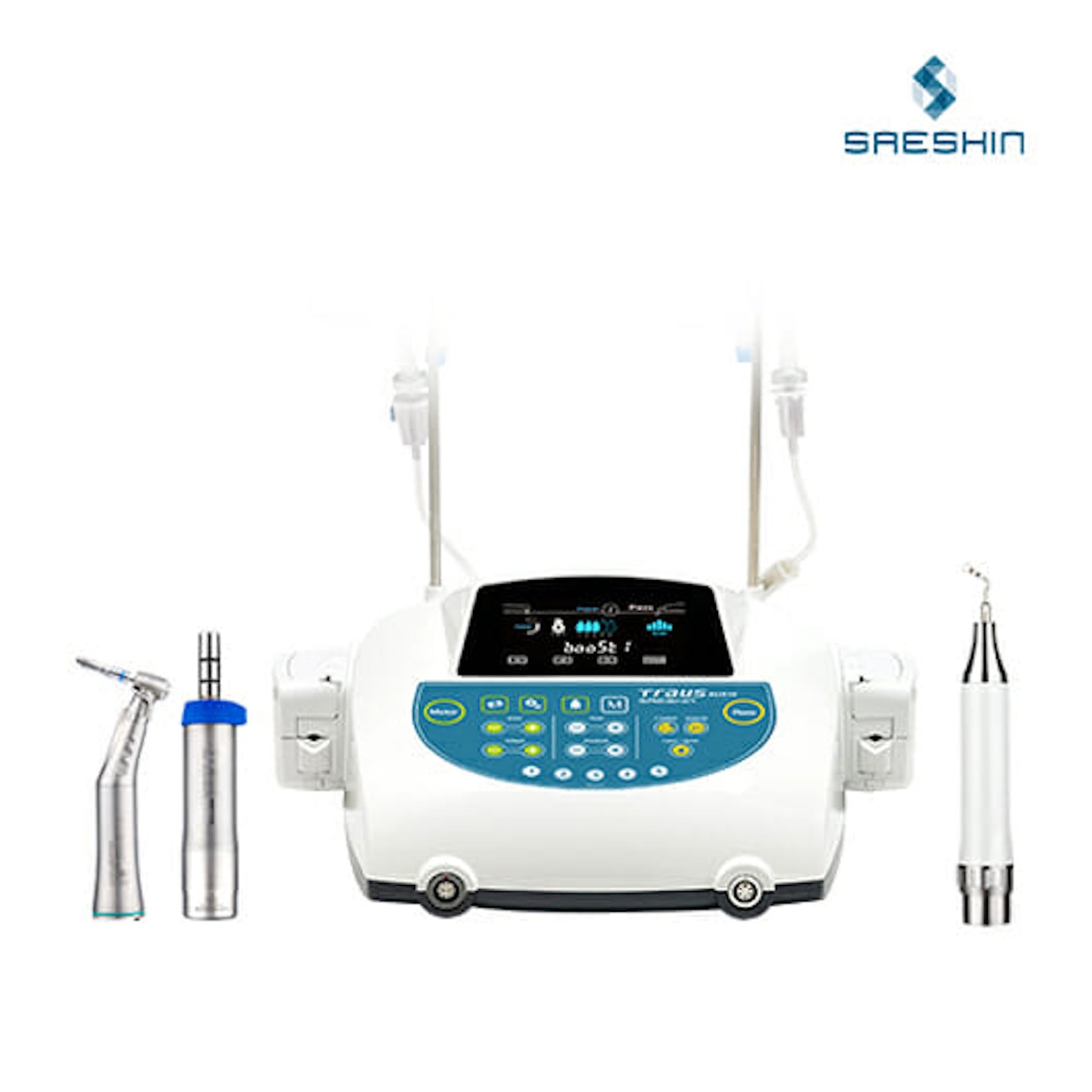

Includes in set

• TRAUS XUS10 Control Box (dual engine unit)
• Ultrasonic Piezo Handpiece TRAUS PEZ10XX
• Selected Contra Angle Handpiece (see configuration)
• Matching E-type Motor (optic or non-optic)
• Foot Pedal Controller (Footswitch)

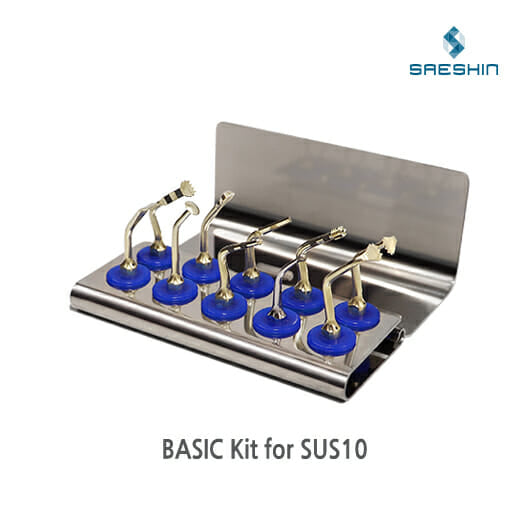

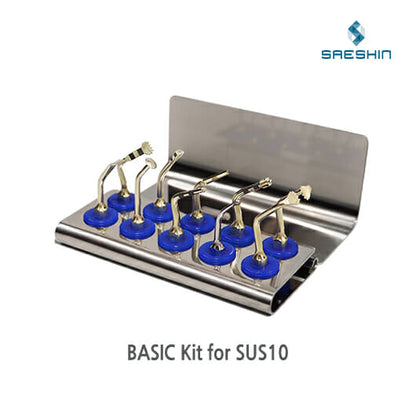

• 10 Piezo Tips
• Power Cord and User Manual

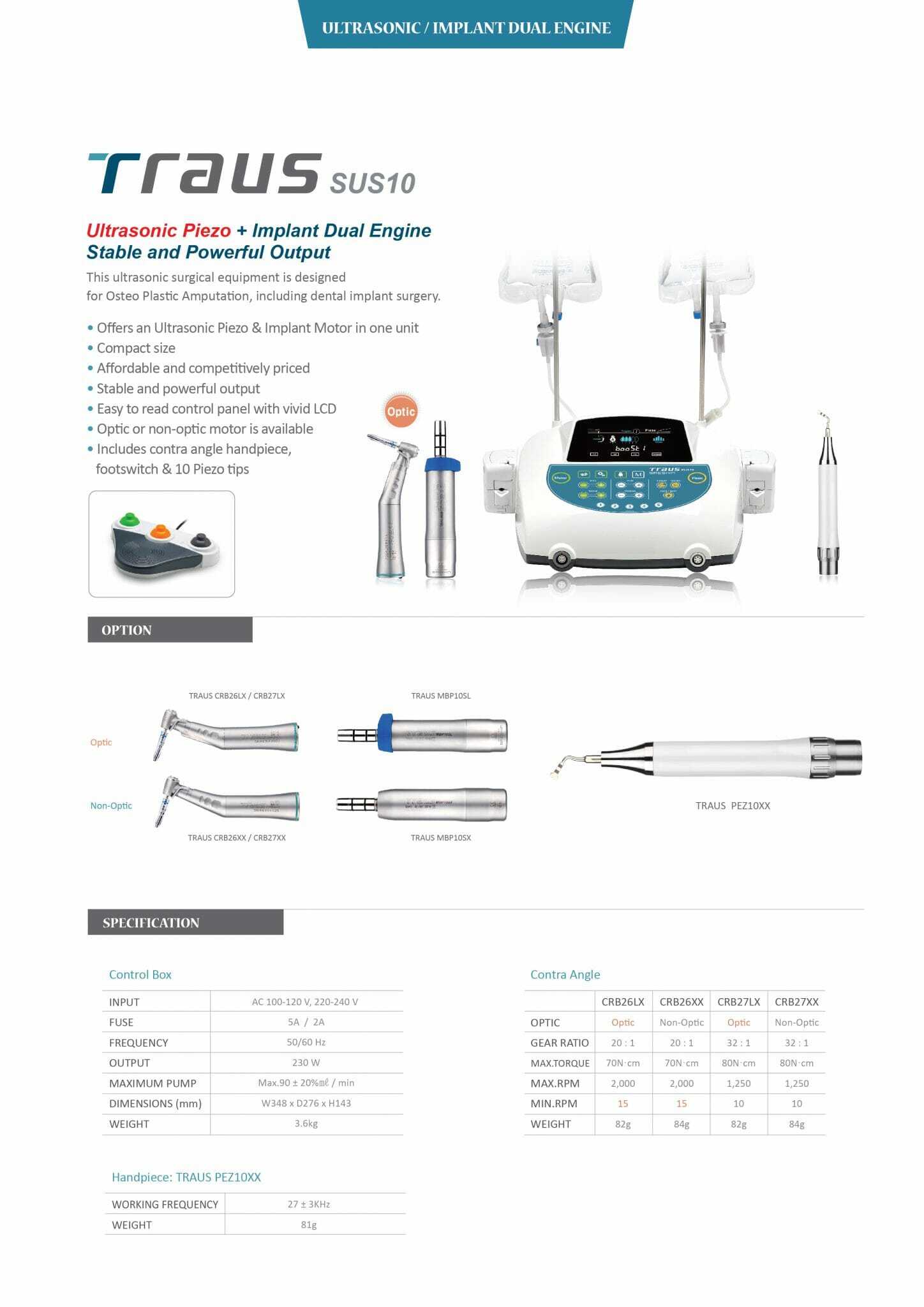

Technical Specifications

Control Box

• Input: AC 100–120 V / 220–240 V
• Fuse: 5 A / 2 A
• Frequency: 50/60 Hz
• Output Power: 230 W
• Maximum Pump: 90 ± 20 ml/min
• Dimensions: W 348 × D 276 × H 143 mm
• Weight: 3.6 kg

Ultrasonic Piezo Handpiece TRAUS PEZ10XX

• Working Frequency: 27 ± 3 kHz
• Weight: 81 g

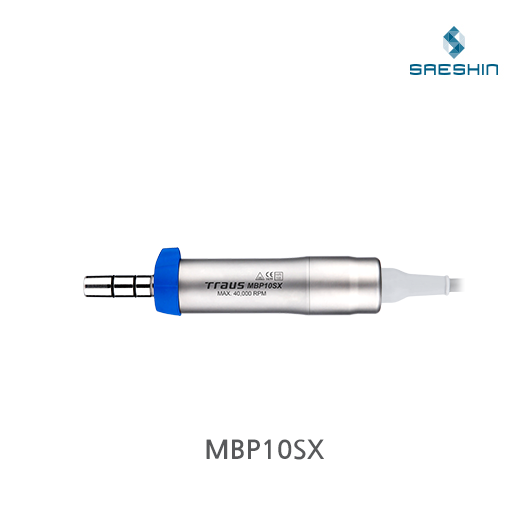

E-type Motors

• Optic Model: TRAUS MBP10SL
• Non-optic Model: TRAUS MBP10SX
• Weight: 9.5 oz (≈ 270 g)

Contra Angle Handpieces

CRB26LX

• Optic: Optic
• Gear Ratio: 20:1
• Max Torque: 70 N·cm
• Max RPM: 2000
• Min RPM: 15
• Weight: 82 g

CRB26XX

• Optic: Non-optic
• Gear Ratio: 20:1
• Max Torque: 70 N·cm
• Max RPM: 2000
• Min RPM: 15
• Weight: 84 g
